Demagnetisers

DMC70

70mm Small Aperture Demagnetiser


The DMC70 is compact and powerful and can be used as both a magnetising and demagnetising coil. Encapsulated in a hard wearing polymer the DMC70 is resistant to impact, abrasion and corrosion damage. This unit is ideal for small tools and low volume demagnetisation in almost any engineering environment.

The DMC70 is fitted with a self-resetting thermal cut-out to prevent burnouts from misuse as standard.


Versions Available

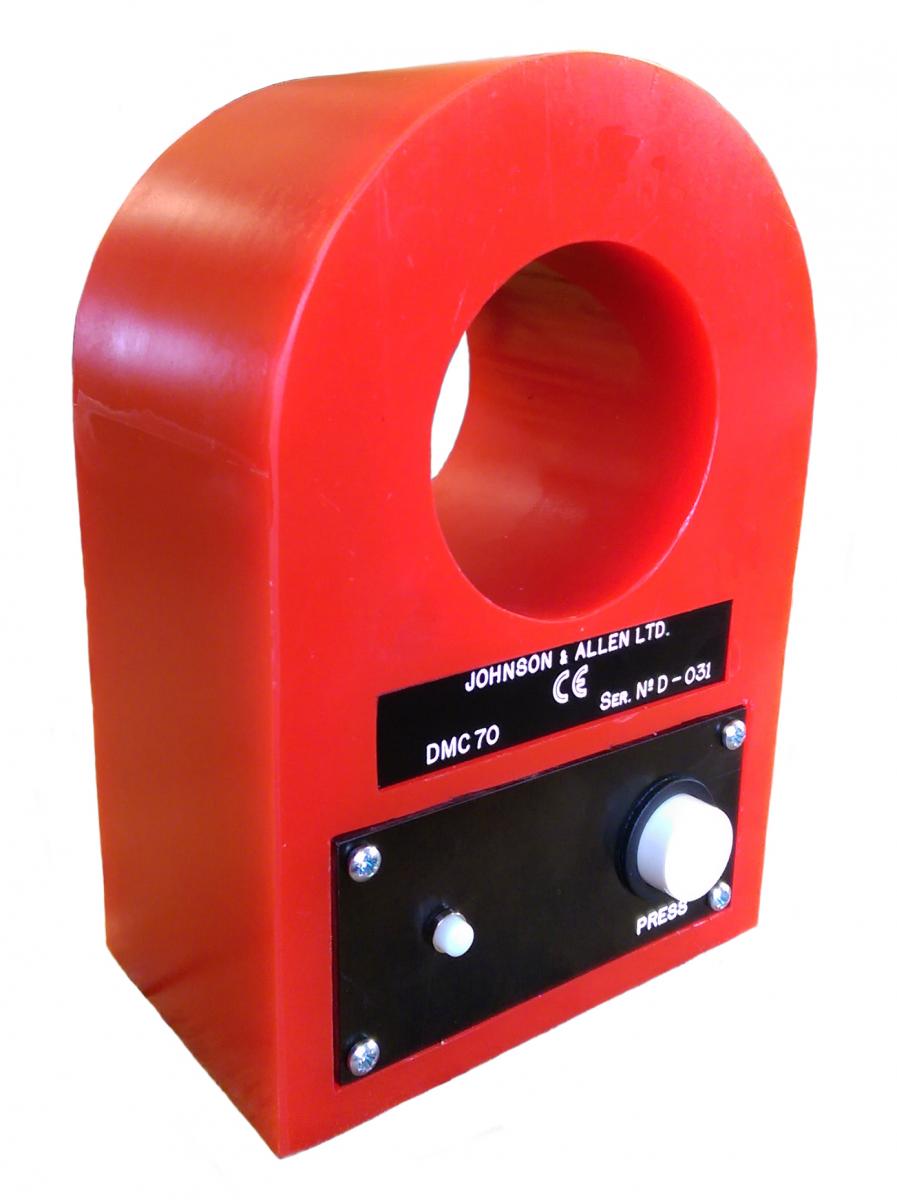

  • Bench Mounted (Default) - Standard version featuring a push-to-energize button on the front facia.

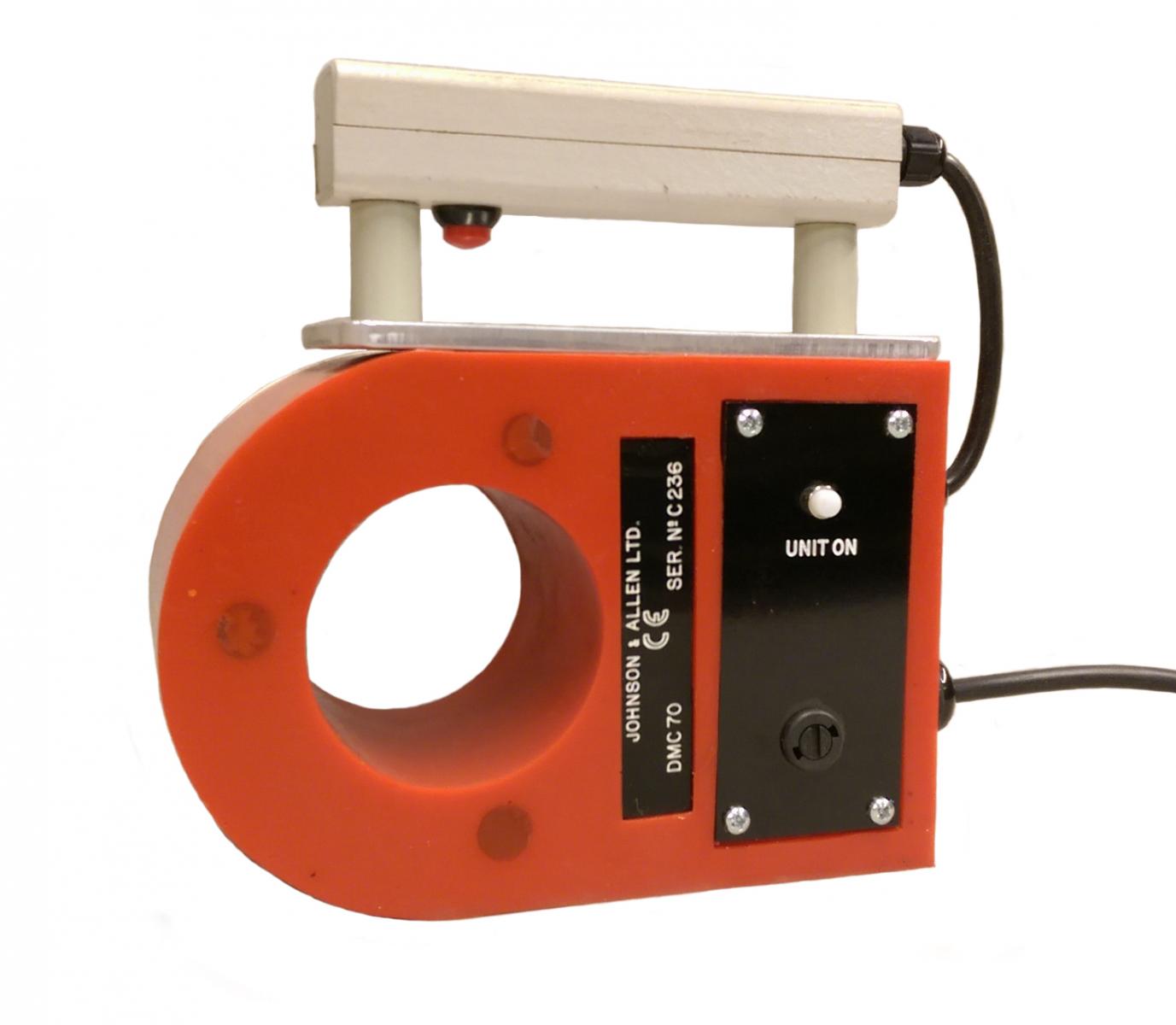

  • Hand Held - Handle on a side facia with a trigger switch.
  • Fluke - Features a base plate to allow the energizing button mounted to one side of the coil.

Product Data

Version Bench Mounted Hand Held Fluke
Input Supply
(Unloaded)
230VAC @ 0.7A 230VAC @ 0.7A 230VAC @ 0.7A
Voltage Regulation ±10% of nominal ±10% of nominal ±10% of nominal
Frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz
Waveform AC AC AC
Aperture Diameter 70mm (2.7 Inches) 70mm (2.7 Inches) 70mm (2.7 Inches)
Energize Switch Position Front facia Trigger switch on handle Side mounted
Duty Cycle 25% - Max. ON time 30 seconds 25% - Max. ON time 30 seconds 25% - Max. ON time 30 seconds
Magnetic Field
(@ Center)
265 Gauss
(21.1 KA/m)
265 Gauss
(21.1 KA/m)
265 Gauss
(21.1 KA/m)
Coil Dimensions (LWH) 130 x 80 x 190mm 270 x 80 x 200mm 160 x 80 x 190mm
Coil Weight 3 Kg 3 Kg 3 Kg
Ingress Protection IP54 IP54 IP54
Mains Lead 2 Meters 4 Meters 2 Meters
Plug Type 230V, 13A - 3 Pin UK (Unless otherwise requested) 230V, 13A - 3 Pin UK (Unless otherwise requested) 230V, 13A - 3 Pin UK (Unless otherwise requested)
Warranty 12 Months 12 Months 12 Months
