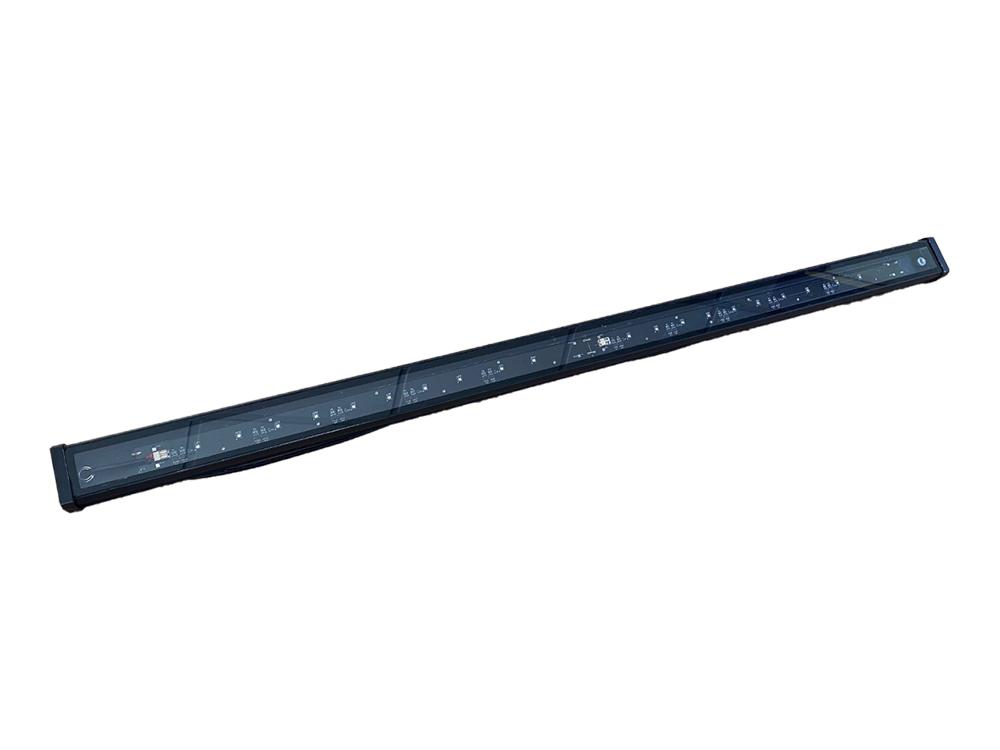

Enigma XL Striplight
365nm UV-A LED StripLight
Overhead NDT Strip-Light
Intended as a replacement for UV tube fixtures, the Enigma XL strip light is ideal for providing 365nm wavelength UV-A blacklight which is used extensively in NDT, forensics and document checking.
With an ingress protection rating of IP65 the Enigma XL strip light is ideal for mounting above penetrant wash-off tanks and providing background UV illumination above MPI bench units.
IP 65 Rated - Waterproof
The Enigma XL strip light is ingress protection rated to IP 65.
What does this mean?
This means that the Enigma XL Strip-Light has the highest level of protection against dust (the 6) and protection from low pressure water jets from any direction.
Practically this ensures that the Enigma XL Strip-Light can safely operate in almost any NDT environment.
Features
- Suitable for almost any NDT environment

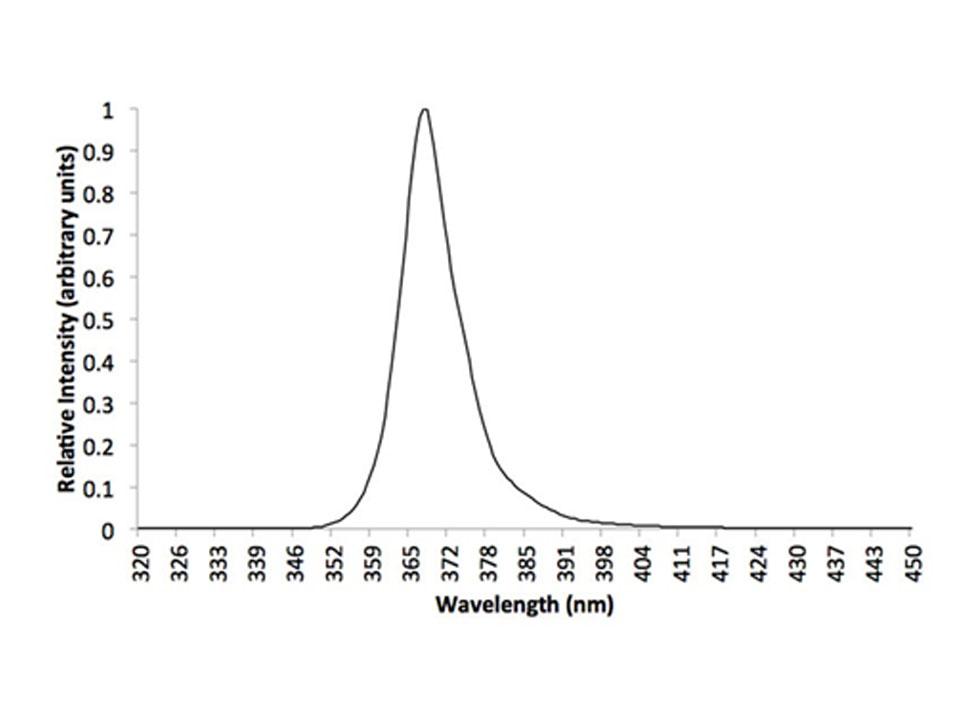

- 365nm peak wavelength
- Ideal for background illumination over wash stations and MPI bench units etc.
- Waterproof - Rated to IP 65
- Features fixing mount for easy installation
What is included?
- Enigma XL UV-A Strip-Light
- 12V DC Power Supply
- 2 x hinge bracket with 180 degree fitting
- Operating / Safety Manual
UV-A Output
|
Distance |
UV-A Output |
|
100mm |
> 19,000 μW/cm² |
|
200mm |
> 11,500 μW/cm² |
|
300mm |
> 7,700 μW/cm² |
|
400mm |
> 5,500 μW/cm² |
|
500mm |
> 4,100 μW/cm² |
| 600mm |
> 3,300 μW/cm² |
| 700mm |
> 2,800 μW/cm² |
|
800mm |
> 2,300 μW/cm² |
| 900mm | > 1,800 μW/cm² |
| 1000mm | > 1,600 μW/cm² |
Illuminated Area @ 1000mm
| > 1,600 μW/cm² | 200 x 1000 mm |
| > 1,300 μW/cm² | 400 x 1000 mm |
| > 1,100 μW/cm² | 600 x 1000mm |
| > 850 μW/cm² | 800 x 1000mm |
| > 500 μW/cm² | 1000 x 1000mm |
| > 350 μW/cm² | 1200 x 1000mm |
If you would like any measurements taken which are not listed then please get in touch as our team would be happy to assist and recommend the most suitable lighting solution for your application.
Product Data
| Input Supply | 100 to 240V @ 50 / 60 Hz |
| Output Supply | 12V DC |
| UV Source | 20 x Seoul Visoy LED |
| UV Source Life Span | 15,000 hours (R70) |
| Peak UV Wavelength | 365nm |
| Power | 96 W |
| Construction Material | Anodised Aluminium |
| Weight | 1 kg |
| Dimensions (Approximate) | 1015 x 55 x 44 mm |
| Ingress Protection | IP65 |
| Warranty | 12 months |
Is this Enigma XL Strip-Light right for you?
Unsure if this is the right light for you? Give us a call or drop us an message online discuss your requirements further. We are happy to discuss your needs as we understand every customer setup is unique. We are happy to undertake bespoke intensity measurements if you have a minimum irradiance level you are looking to achieve.
