Inspection Lamps
Maxi-T
NDT Flashlight

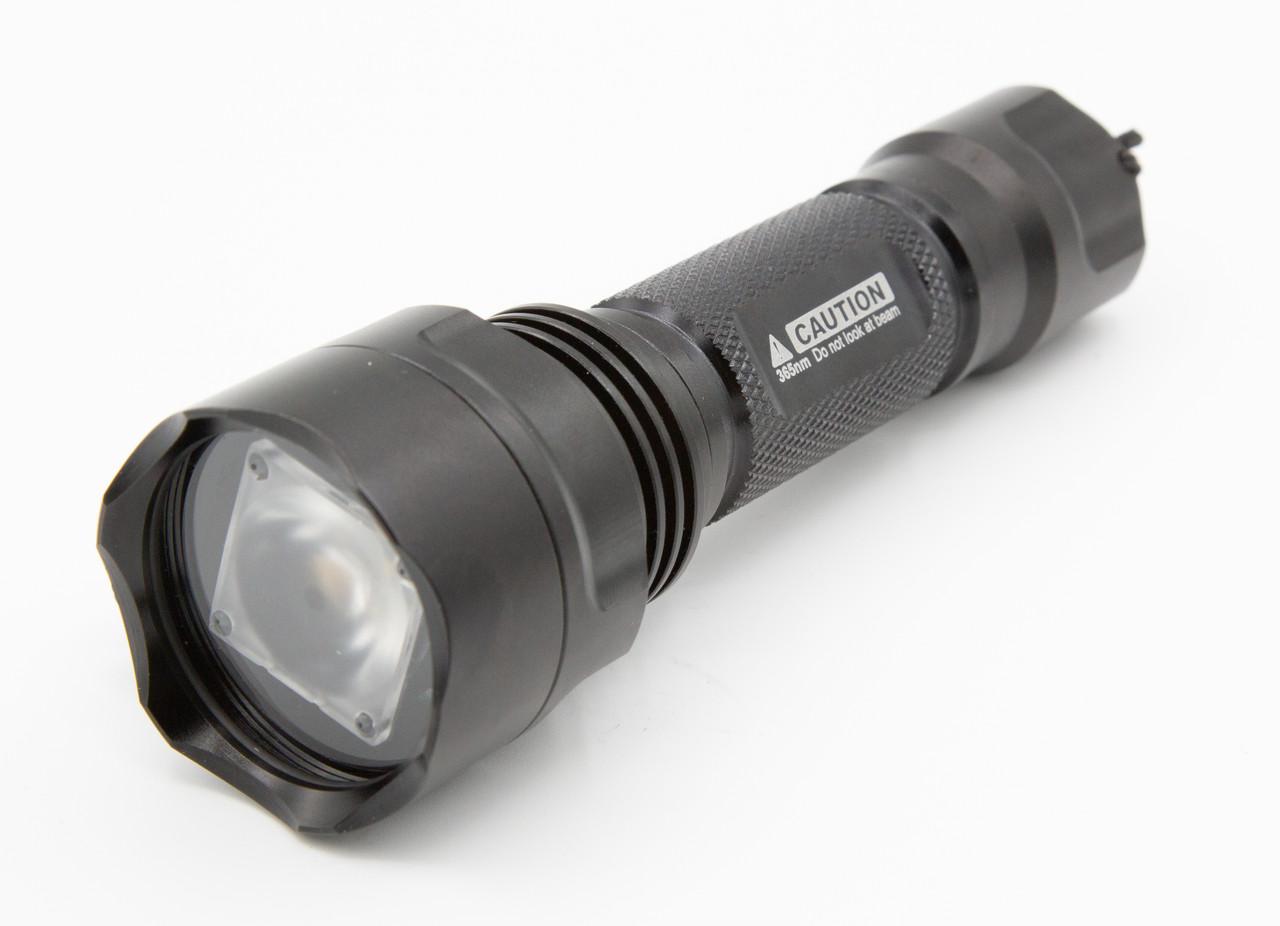

LED Inspection Torch - Wide Beam UV-A 365nm
Small enough to fit comfortable inside any palm or pocket the Maxi-T is ideal for inspections where space is limited. The Maxi-T uses a purpose designed optical prism to diffuse the UV light produced by the LED emitter to give a wide and uniform beam spread for a product of this type.

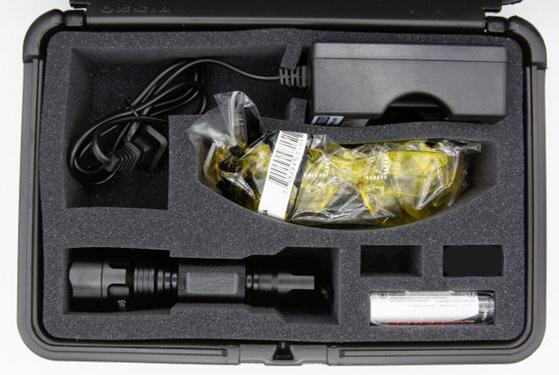

The Maxi-T is supplied in a plastic carry case with foam inserts with 2 rechargeable Lithium ion batteries, battery charger and UV safety spectacles.
Product Data:
- 135mm in length
- Tail cap ON / OFF switch
- Supplied with 2 rechargeable Lithium ion batteries and battery charger
- Replacement parts and batteries available
Technical Specification / Spectral Information
| Light Source | Nichia UV LED |
| Peak Wavelength | 365 ± 5 nm |
| Intensity (@ 380mm) | > 2500 μW/cm² |
| Visible Light | < 5 lux |
| Coverage Area / Beam Profile (@ 380mm) | 150mm |
| UV-B | 0 μW/cm² |
| UV-C | 0 μW/cm² |
| Battery Data | 2 x Li-ion Battery, 3.7V |
| Working Period (Full Charge) | 6 Hours (2 Cells x 3 Hours) |
| Charging Period | 2 Hours |
| Wavelength Drift (@ Elevated Temp.) | ≤ 5 nm |
| Full Width @ Half Maximum (FWHM) | ≤ 15 nm |
| Longest Wavelength @ Half Maximum (LWHM) | ≤ 377 nm |
| ± Width @ Half Maximum | ≤ ± 8 nm |
| Full Width @ 10% Maximum (FW10%) | ≤ ± 25 nm |
| ± Width @ 10% Max. | ≤ ± 12 nm |
| Operational Temperature Range | 5 to 50 °C |
| Input Supply (Power Adaptor) |
100-240V, AC |
| Warranty | 12 Months |
| Quality Marks | UKCA, CE, RoHS |
