Magnetic Particle Inspection (MPI) Equipment


260mm Aperture AC Demagnetizer

NDT Magnetizing Coil

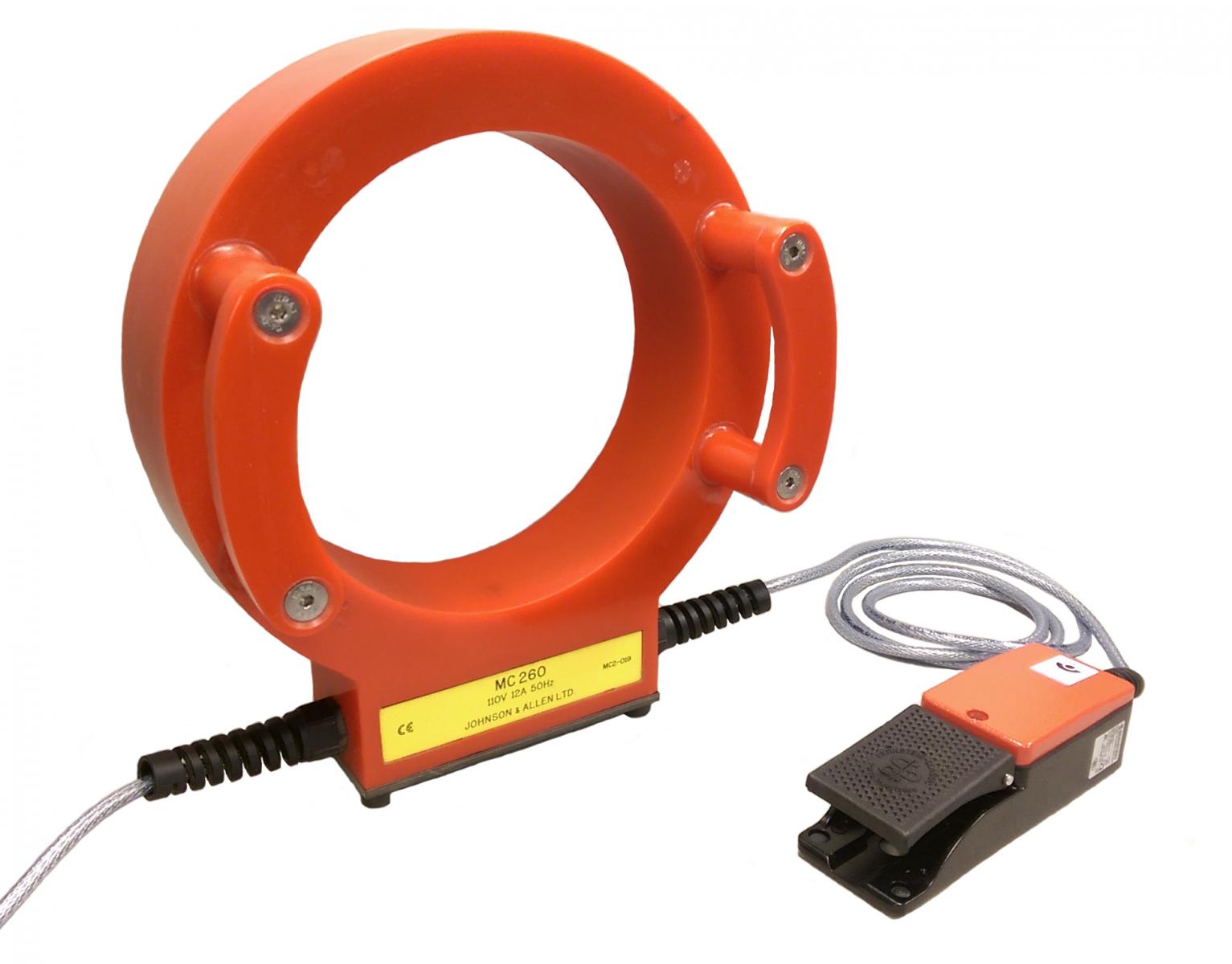

The MC260 can be used as both a magnetizing and demagnetizing coil and is capable of finding circumferential orientated defects. Encapsulated in a hard wearing polymer the MC260 is resistant to impact, abrasion and corrosion damage. This unit is suitable for use in even the harshest engineering environments.

The MC260 is supplied with an energising Foot Pedal for ease of use as standard - With all cables being heavy duty armoured type for additional robustness.

Versions Available:

  • MC260 - 110V Model (AC Only)
  • MC260/A - 230V Model (AC Only)
  • MC260/2 - AC/DC Model (Click here to see separate product page)

Product Data

Version 110V Model (AC Only) 230V Model (AC Only) AC/DC Model
Input Supply
110VAC @ 12.2A 230VAC @ 5.9A 110VAC @ 12.2A
Voltage Regulation ±10% of nominal ±10% of nominal ±10% of nominal
Frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz
Waveform AC AC AC / DC
Aperture Diameter 260mm (10 Inches) 260mm (10 Inches) 260mm (10 Inches)
Energize Switch Position Foot Pedal Foot Pedal Hand Control
Mode Selection N/A N/A Selector Dial on Control Box
Duty Cycle 25% - Max. ON time 30 seconds 25% - Max. ON time 30 seconds 25% - Max. ON time 30 seconds
Magnetic Field
(@ Center)
125 Gauss
(10 KA/m)
125 Gauss
(10 KA/m)
125 Gauss
(10 KA/m)
Coil Dimensions (LWH) 360 x 105 x 405mm 360 x 105 x 405mm 360 x 105 x 405mm
Coil Weight 12 Kg 12 Kg 12 Kg
Control Box
Dimensions (LWH)
N/A N/A 280 x 280 x 310mm
Control Box Weight N/A N/A 15 Kg
Ingress Protection IP54 IP54 IP54
Mains Lead 4 Meters 4 Meters 4 Meters
Foot Pedal / Hand Control Lead 2 Meters 2 Meters 2 Meters
Plug Type ‘C’ Form - 16A ‘C’ Form - 16A ‘C’ Form - 16A
Warranty 12 Months 12 Months 12 Months
