MPI Power Packs

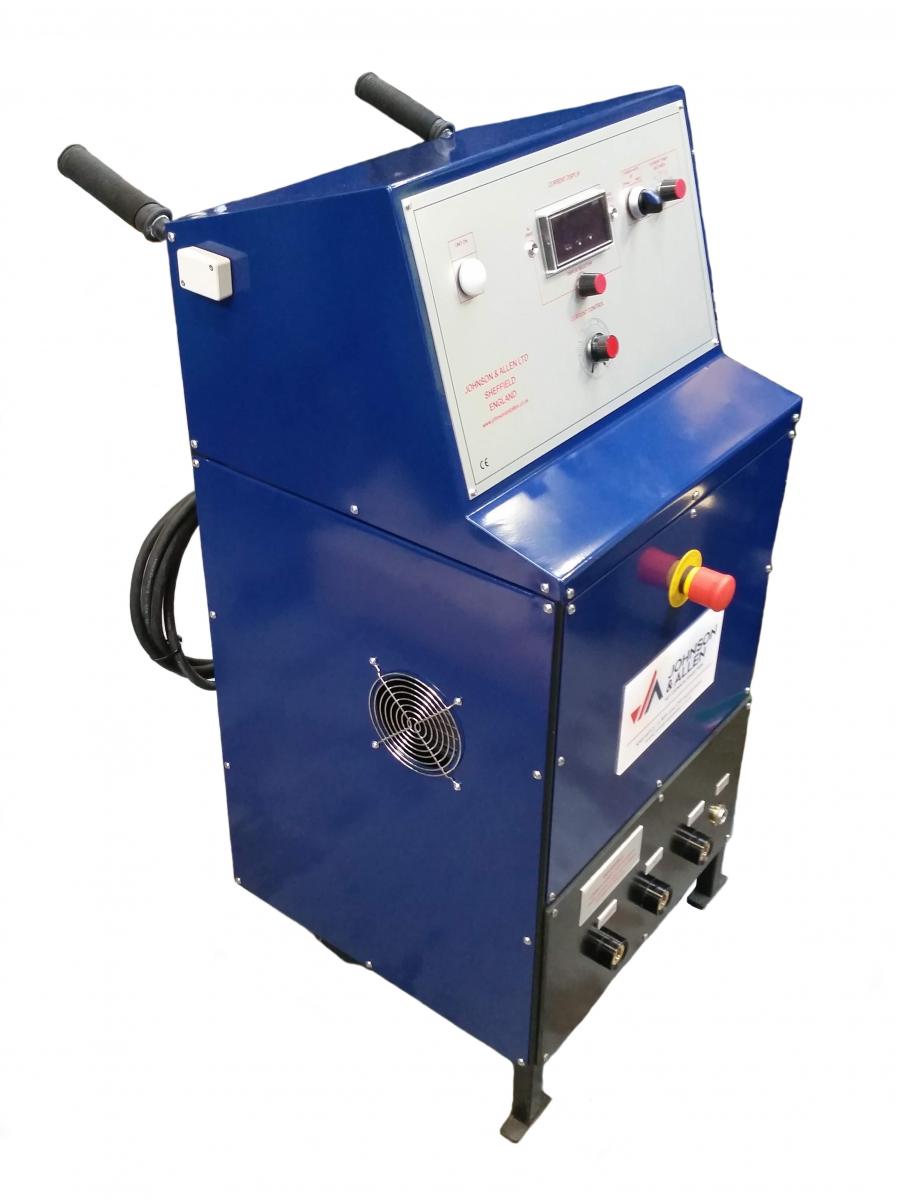

Mobile Power Pack

Mobile Current Generator

Mobile MPI Power Pack

The Johnson & Allen Mobile Power Pack features AC energising modes for surface inspection as standard but optional HWDC capability for slightly sub-surface inspection is available on request.

Push-button decaying AC demagnetization and 5 position adjustable shot timer can also be installed if required.

Versatile Design

The Mobile Power Pack is ideal for performing pistol prod and encircling techniques but can also be used in conjunction with fixed coils, split coils and ‘G’ clamp type prods.

The Mobile Power Pack is supplied fully calibrated with the relevant paperwork and includes an energizing foot pedal with armoured lead.

Quality UK Construction

The transportable power pack is a highly robust unit that is built around a steel frame which includes 2 internally mounted wheels and rubber grip handles for easy re-siting. Safety features such as thermal cut-outs and current protection devices are fitted as standard on the Mobile Power Pack to ensure that even inadvertent misuse will not put operators at risk.

Johnson & Allen pride itself on high quality design and construction which is why the power transformers used in the transportable power pack are wound, built and extensively tested in house before they are installed.

Versions Available

  • 230V Input - 60A
  • 415V Input - 30A

Product Data

Transformer Rating* 2000A
Energising Modes AC (Standard)
HWDC (Optional)



*Transformer rating is no reflection of the current obtainable. Due to variation in component length, geometry and electrical inductance as well as heating effects this can limit the output practically available.

Talk To Our Team

As with all bespoke builds Johnson & Allen recommend customers contact our technical sales department to discuss their precise needs first. Our experienced team can recommend the most economical way to achieve customer requirements.
