Magnetic Particle Inspection (MPI) Equipment

Reference Block Type 1

MTU-3 Test Piece

Comparator Test Piece

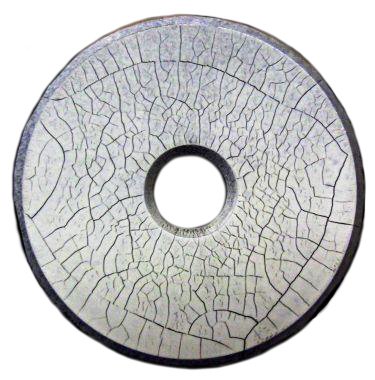

MPI Reference Block 1 is made by quenching a steel block coated with a Chrome surface - The hard Chrome surface cracks when rapidly cooled forming a test pieces covered in natural discontinuities on both sides.

Reference Block 1 has a variety of indications ranging from small to large.

Can be supplied with a photo showing indications for a small additional cost.

Made according to MPI standard EN ISO 9934-2

Ideal for:

  • Evaluating MPI test materials - Check the sensitivities of different magnetic inks etc.
  • Comparing different consumable brands.
  • Comparing fresh and used magnetic inks.
  • Checking that aerosol cans are actually delivering particles as expected.
  • Can be used with fluorescent or visible magnetic particles.
