Ultrasonic Testing (UT)

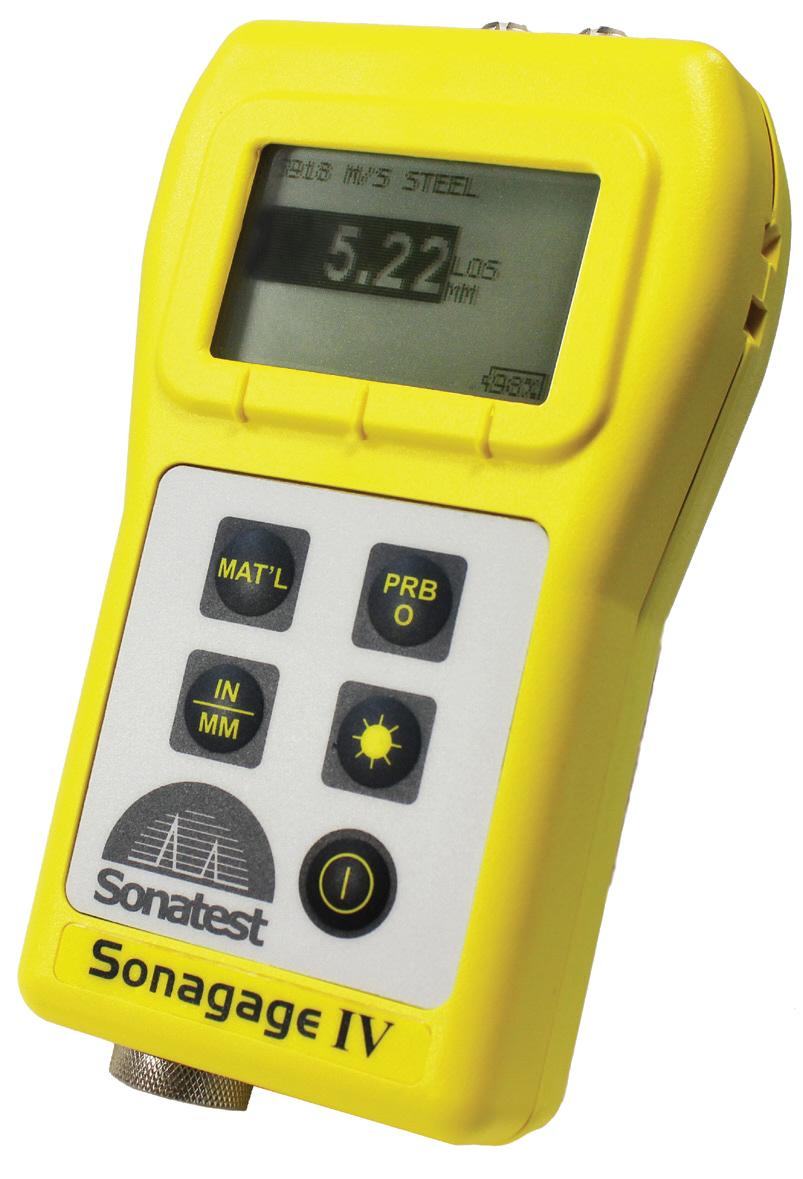

Sonagage IV
Ultrasonic Thickness Gauge
Suitable for a range of materials
The Sonagage IV is ideal for the operator that tests a few different materials regularly and contains 8 velocities of common materials and two velocities that the user can set using a simple software program.
| Material | Velocity (m/s) | Velocity (in/us) |
| Aluminium | 6350 | .25000 |
| Steel | 5918 | .23300 |
| Stainless Steel | 5664 | .22300 |
| Cast Iron | 4572 | .18000 |
| Plexiglass | 2692 | .10600 |
| PVC | 2388 | .09400 |
| Polystyrene | 2337 | .09200 |
| Polyurethane | 1778 | .07000 |
| Custom | ||
| Custom |
Key Features
- Thickness Range: 0.2 mm - 508mm (0.008 - 20 inches) - Depending on material, temperature and transducer selection
- Automatic probe wear indicator (Transducer Attendant) - Automatically informs the operator to replace the transducer
- Backlight - Light emitting diode, On/Off or Auto On, based on valid reading being taken or last key press
- Shut Off - Auto time out (after X minutes user programmable after no-reading, loss or no keypress)
Sonagage IV Kit Includes
- Sonagage UT Thickness Gauge
- DKS-537 twin crystal 5 MHz 0.375"/9.52mm dia. potted probe
- Operator Manual
- Cable
- Couplant
- Carry Case
Product Data
| Weight | 230g (8 ounces) |
| Size | 76.2mm x 127mm x 31.8mm (3” x 5” x 1.25”) |
| Operating Temperature | -20° to 50°C (-4° to 122°F) |
| Material Surface Temp |
-20° to 537°c (-4° to 1000°F) |
| Thickness Range | 0.5mm - 508mm (0.020 - 20 inches) Depending on material, temperature and transducer selection |
| Automatic Probe wear indicator |
Transducer Attendant - Automatically informs the operator to replace the transducer. (Patent pending). |
| Backlight | Light emitting diode. On/Off or Auto On, based on valid reading being taken or last key press |
| Shut Off | Auto time out (after X minutes user programmable after no-reading, loss or no key presses) |
| Battery Type | 2 x AA alkaline |
| Battery Life | Operates for 50 hours (20 hours with back-light on) |
| Display | 128 x 64 Graphics LCD monochrome |
| Information Displays | LoS, large reading while displaying min at the same time, velocity, zero, calibration, units, % battery life remaining |
| Resolution | 0.01mm (0.001 ins) |
| Bandwidth | 0.5 - 20 MHz (-3dB) |
| Measurement Rate | 4/sec |
| Units | Metric (English) |
| Warranty | 12 Months |
| Casing | Customised, splash proof (IP54), high impact plastic with rubber |
| Shipping Case | Hard plastics with high density moulded cut out for all accessories (optional) |
| Carrying Pouch | Custom moulded pouch with wrist strap for left or right handed operators (optional) |
