Titan UV-A Floodlight

365nm UV-A LED FLOODLIGHT

---

Overhead NDT Blacklight

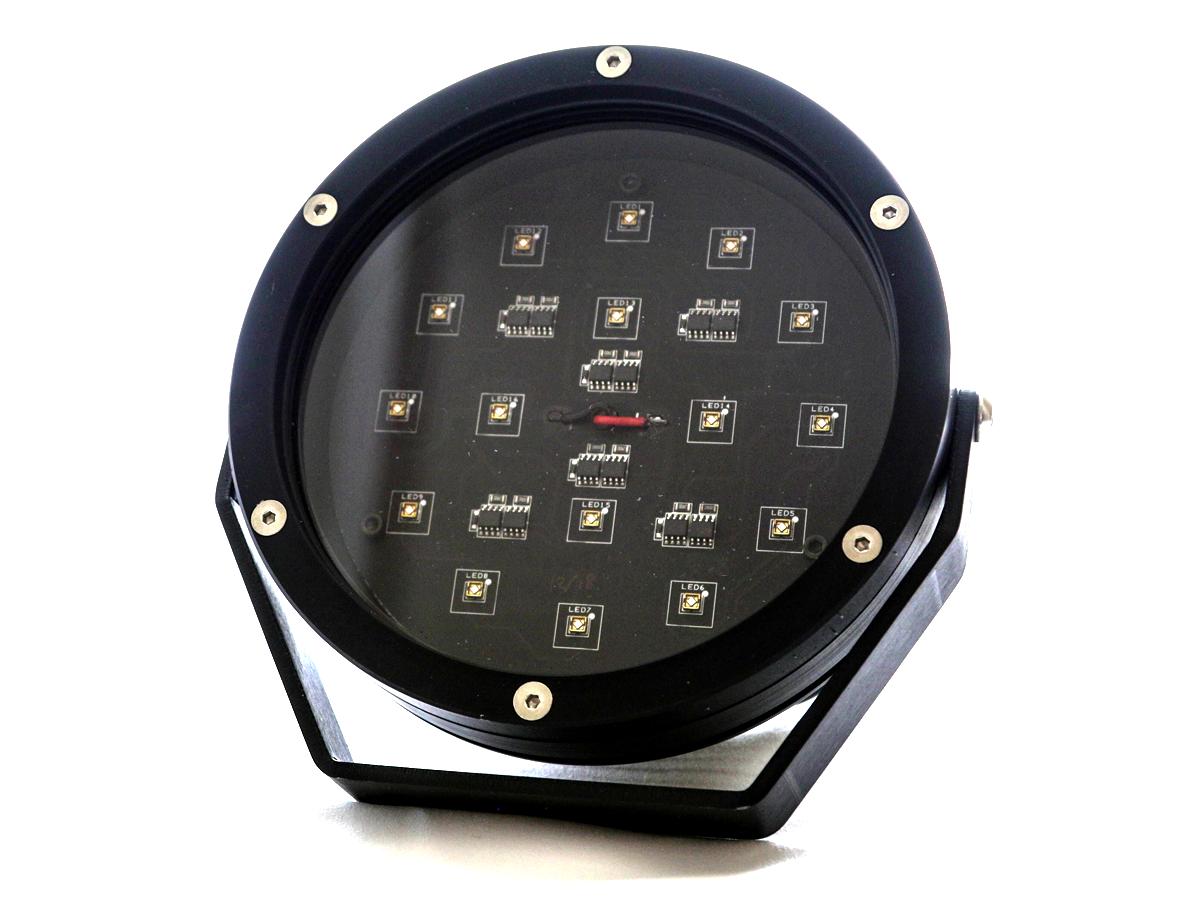

The Titan UV-A Floodlight features 16 LED emitters giving great performance, with no hot spots in the beam pattern and is suited for a wide range of common NDT applications. These include background UV illumination when mounted over penetrant wash stations to check for adequate wash-off or above MPI bench units for inspection.

The unit is features a mounting bracket and is supplied with a mains power supply with UK 13A plug as standard.

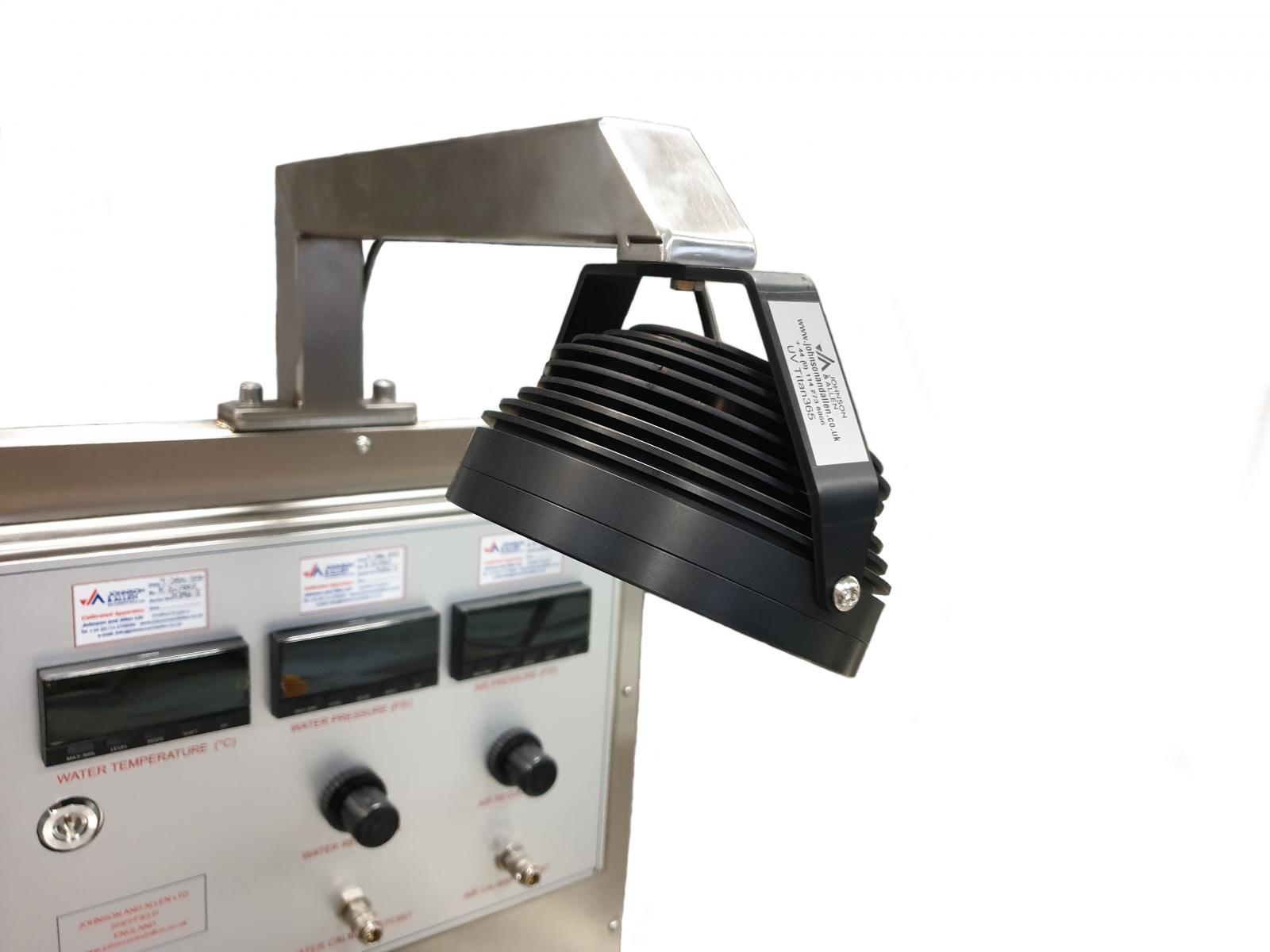

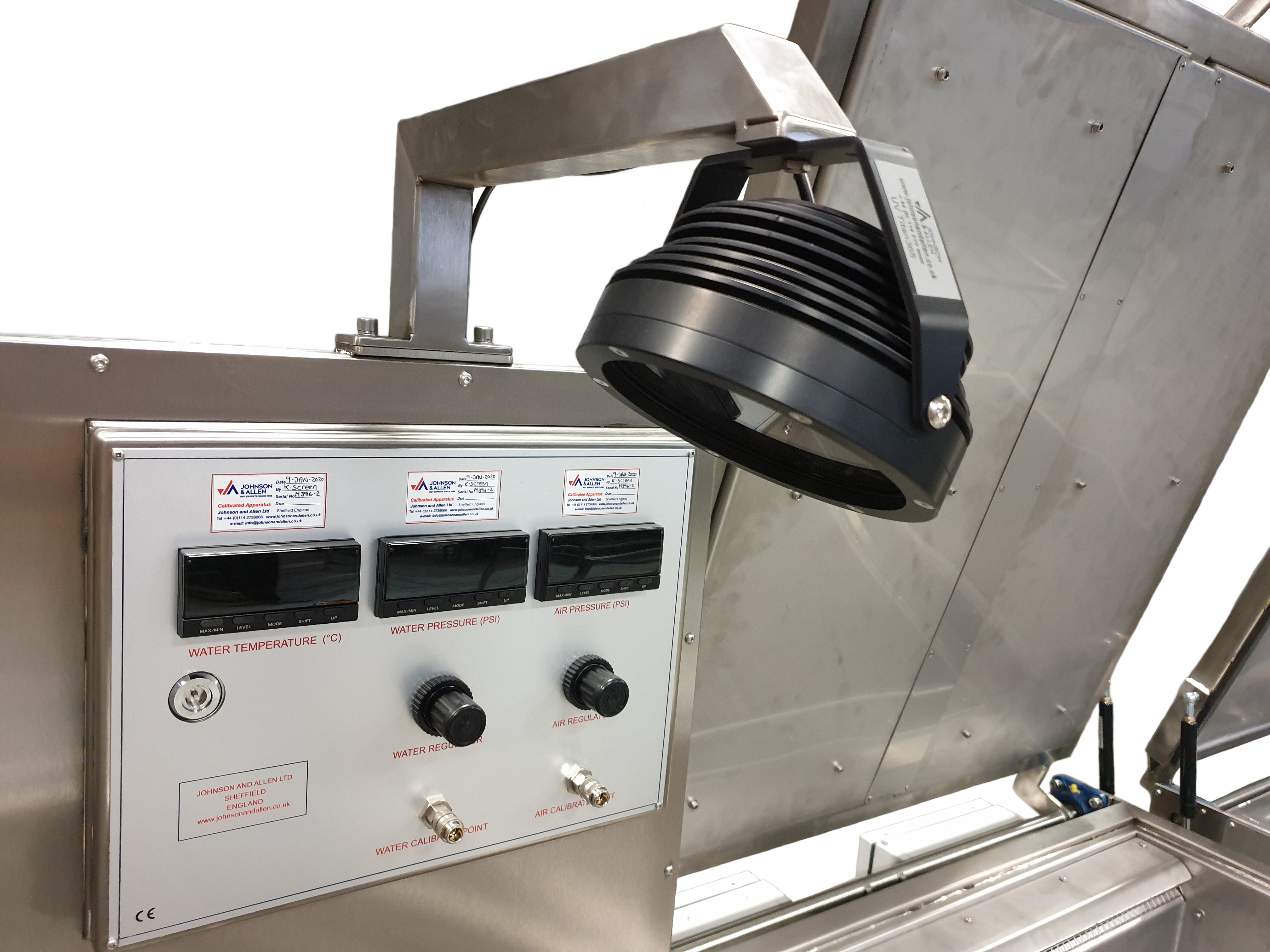

Stainless Steel support pictured above on wash station not included.

Other plug types available on request.

---

ISO3059 and ISO9934-3:2015

The Titan UV-A Floodlight meets the requirements of ISO3059 and ISO9934-3:2015.

---

IP 67 Rated - Waterproof

The Titan UV-A Floodlight is ingress protection rated to IP 67.

What does this mean?

This means that the Titan UV-A Floodlight has the highest level of protection against dust (the 6) and immersion protection up to 1 meter of fresh water for 30 minutes (the 7).

Practically this ensures that the Titan UV-A Floodlight is waterproof and can safely operate in almost any NDT environment.

---

Features

• Suitable for almost any NDT environment
• 365nm peak wavelength
• Ideal for background illumination over wash stations and MPI bench units etc.
• Waterproof - Rated to IP 67
• Features fixing mount for easy installation
• Great performance (see below)

---

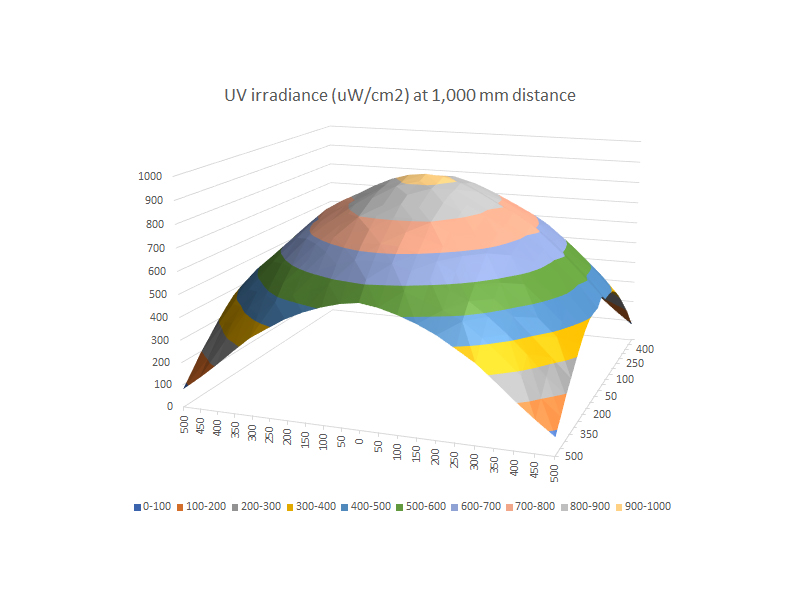

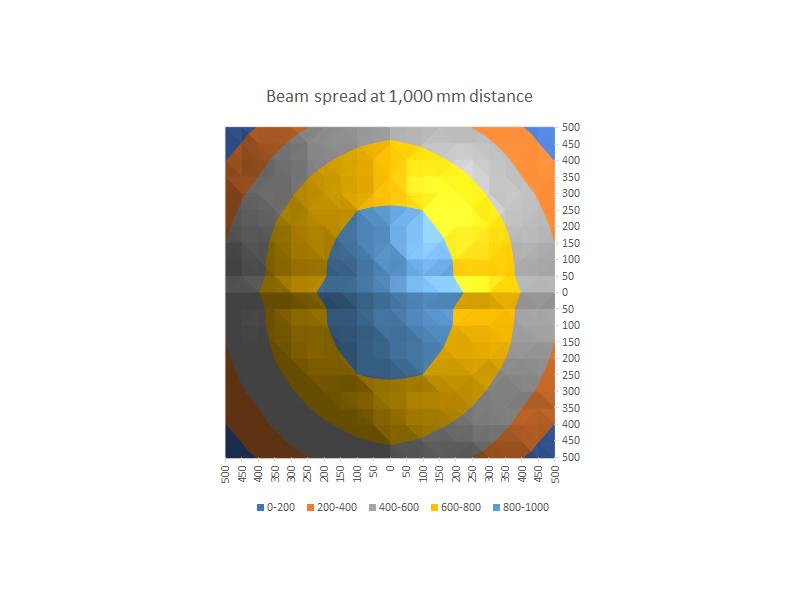

UV-A Output

Distance	UV-A Output	Area
380mm (15")	>1,000 μW/cm²	400 x 400mm
380mm (15")	>300 μW/cm²	500 x 500mm
1200mm (48")	>300 μW/cm²	900 x 900mm

---

Product Data

Emitters	16 x 365 nm LED chips running at 2 W per chip
UV Source Lifetime	25,000 Hours (estimated)
Warm-Up	2 minutes

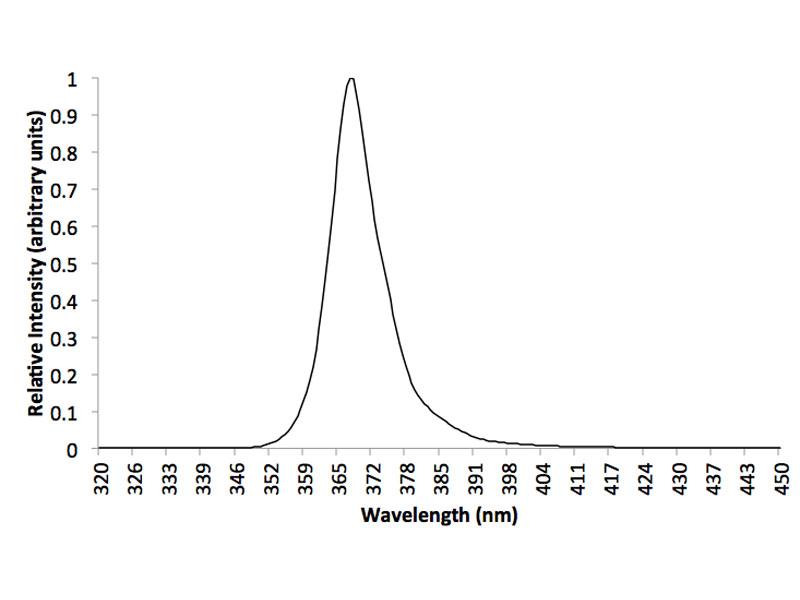

Peak Wavelength	365nm
Wavelength Range	360 to 370nm
Ingress Protection Rating	IP 67
Construction	Anodised Aluminium
Weight	1.5 kg
Dimensions	150mm Dia x 110mm (Approx.)
Voltage	100 to 240V
Power	48W
Frequency	50 or 60Hz
Warranty	12 Months
Standards	ISO 3059 ISO 9934-3: 2015
